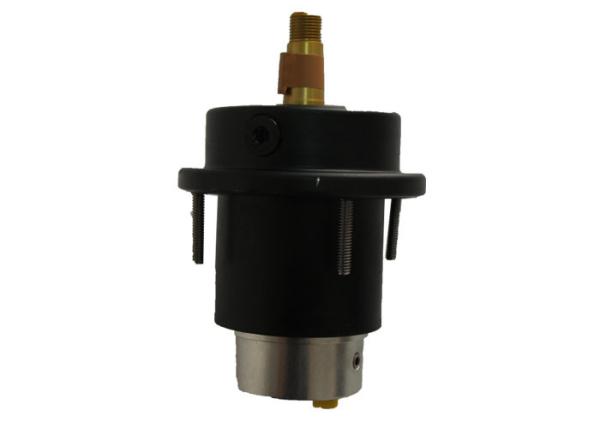

16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP

Ask Lasest Price
Brand Name :	Winibo
Model Number :	WP16NV F
Certification :	CE
Delivery Time :	7-14DAYS
Price :	negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	1000sets per month

Add to Cart

Product Details
Company Profile

16CC Hydraulic Steering Helm Pump WP16NV F For Marine Outboard 90HP

WP16NV F 16CC Hydraulic Steering Helm Pump for Marine Outboard Boat Up To 90HP

Easy to be installed

Unique Gasket design to make it very easy to be mounted

ORB fitting ports

Adjustable O-Ring (ORB) fitting ports for easy installation: It simplify the installation process and will allow for simple reorientation of the fittings after the installation.

WP16NV F

Displacement/Revolution	16 cc
No. of Pistons	5
Output	68 kgf/cm3)
Applicable engines	up to 90hp
Mounting	Front mount
Weight	2 kg , 4.4lbs
turns lock-to-lock	5

The strength required to drive a boat equipped with a hydraulic steering system is inversely proportional to the numbers of turns of the wheel lock-to-lock. The wheel turns are determinated by the ratio between the cylinder volume, pump displacement.

With the same type of cylinder installed on the engine, the less are the turns, the faster is the response but higher in the effort; more wheel turns, slower is the response and lower is the effort.

Other factors that can influence steering effort are:

Vessel speed

Rudder dimension, or engine power

Propeller selection

Hull type(displacement, planning etc.)

Sea conditions

oil viscosity
